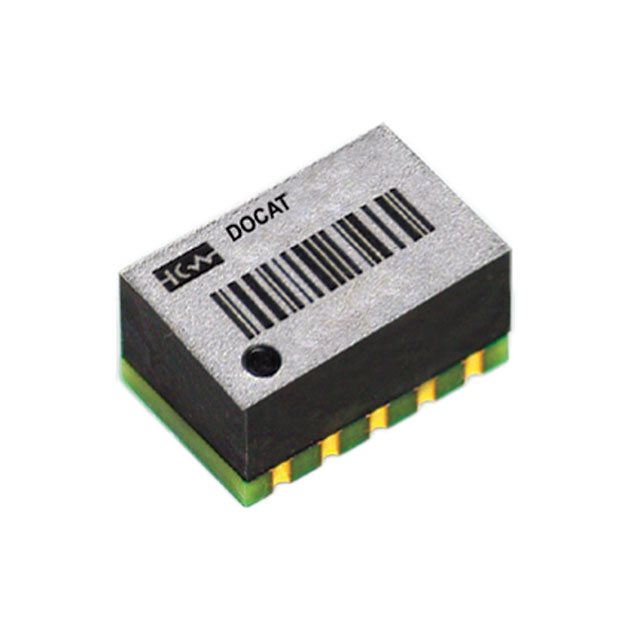

DOCAT022F-010.0M
UnknownConnor Winfield
XTAL OSC OCXO 10.0MHZ 3.3V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DOCAT022F-010.0M
UnknownConnor Winfield
XTAL OSC OCXO 10.0MHZ 3.3V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DOCAT022F-010.0M |
|---|---|
| Base Resonator | Crystal |
| Frequency | 10 MHz |
| Frequency Stability | 20 ppb |
| Height - Seated (Max) | 8.51 mm |
| Height - Seated (Max) [Max] [z] | 0.335 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.555 " |
| Size / Dimension [x] | 14.1 mm |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [y] | 0.358 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DOCAT022F-010.0M
10 MHz OCXO LVCMOS Oscillator 3.3V 6-SMD, No Lead
