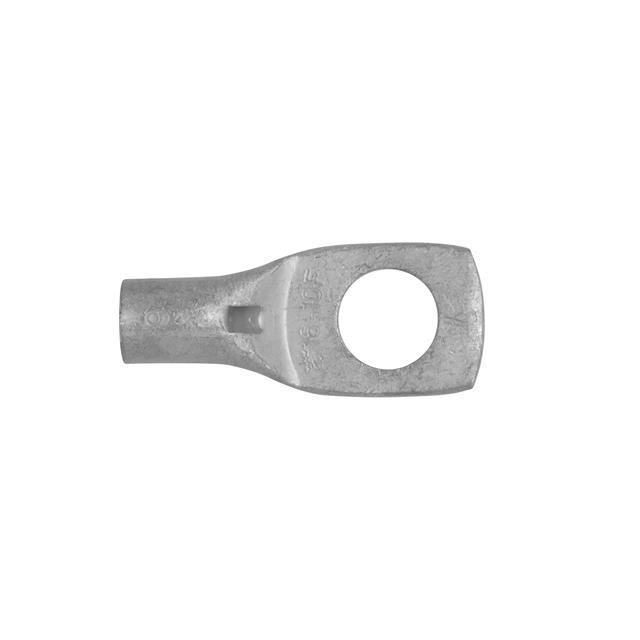

KRF16-10
ActiveElpress Inc.
BATTERY LUG 16 MM M10, 6AWG 3/8
Deep-Dive with AI
Search across all available documentation for this part.
KRF16-10
ActiveElpress Inc.
BATTERY LUG 16 MM M10, 6AWG 3/8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF16-10 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL listed |
| Insulation | Non-Insulated |
| Length - Overall | 1.496 in |
| Length - Overall | 38 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M10 Stud |
| Tab Thickness | 0.091 in |
| Tab Thickness | 2.3 mm |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges [y] | 0.629 in |
| Width - Outer Edges [y] | 16 mm |
| Wire Gauge | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 1.37 | |
Description
General part information
KRF16-10
Terminal Connector Rectangular Ring, Tubular 6 AWG M10 Stud
Documents
Technical documentation and resources
No documents available
