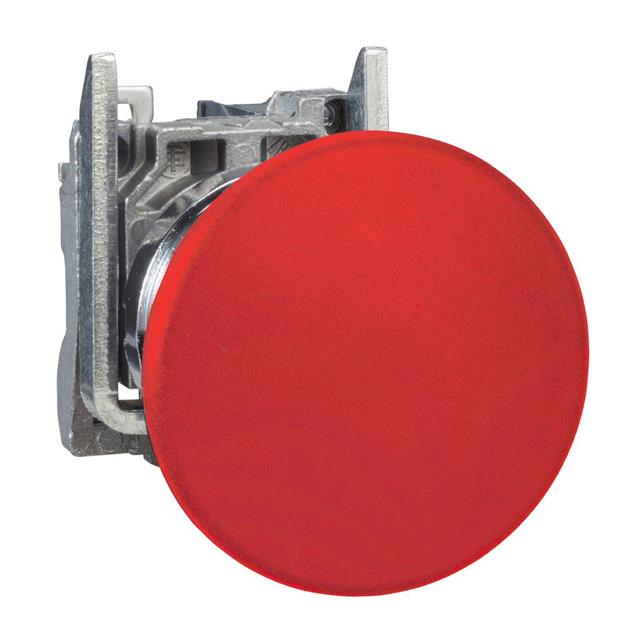

XB4BC42

Active

SQUARE D BY SCHNEIDER ELECTRIC

22MM MOMENTARY PUSHBUTTON W- N-C CONTACT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

22MM MOMENTARY PUSHBUTTON W- N-C CONTACT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	XB4BC42

Circuit	SPST-NC
Current Rating (Amps)	550 mA, 6 A
Ingress Protection	IP67, IP66, IP69, IP69K
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22 mm
Reset Operation	Pull
Switch Function	Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	120 V
Voltage Rating - DC	125 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22MM MOMENTARY PUSHBUTTON W- N-C CONTACT ROHS COMPLIANT: YES
