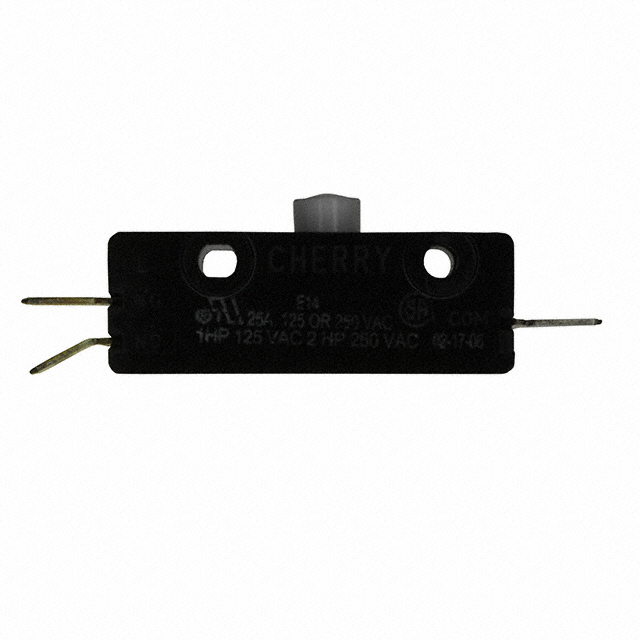

E14-00A
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 25A 125V
Deep-Dive with AI
Search across all available documentation for this part.
E14-00A
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 25A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E14-00A |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 25 A, 2 A |
| Differential Travel | 0.015 in |
| Differential Travel | 0.38 mm |
| Electrical Life | 6000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 850 gf |
| Operating Position [custom] | 6.3 mm |
| Operating Position [custom] | 0.248 in |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.27 mm |
| Overtravel | 0.05 in |
| Pretravel | 0.1 in |
| Pretravel | 2.5 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
E14-00A
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
