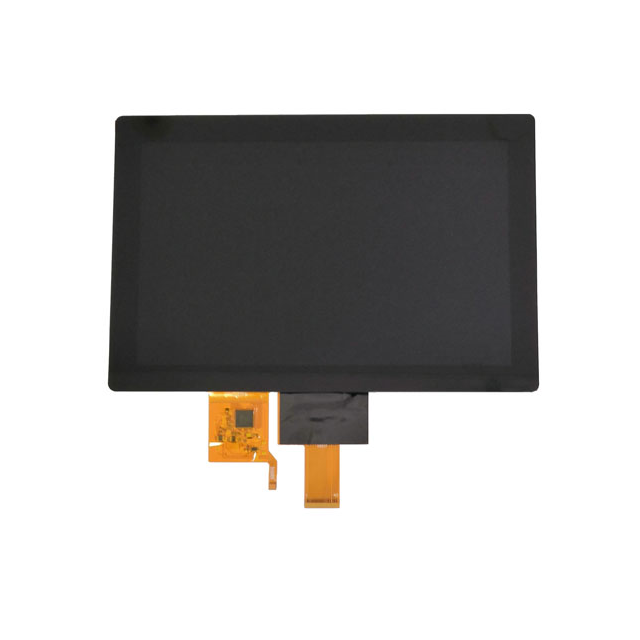

GLT1011280800IS1-CTP
ActiveGlobalTech Display
10.1" IPS LCD 1000 NITS GORILLA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GLT1011280800IS1-CTP
ActiveGlobalTech Display
10.1" IPS LCD 1000 NITS GORILLA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLT1011280800IS1-CTP |
|---|---|
| Background Color | Black |
| Controller Type | EK79202 |
| Diagonal Screen Size [custom] | 256.54 mm |
| Diagonal Screen Size [custom] | 10.1 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pixels [x] | 1280 |
| Dot Pixels [y] | 800 |
| Graphics Color | Green, Red, Blue |
| Interface | LVDS |
| Touchscreen | Capacitive |
| Viewing Area [x] | 249.96 mm |
| Viewing Area [y] | 168.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 129.00 | |
| 10 | $ 125.00 | |||
Description
General part information
GLT1011280800IS1-CTP
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) LVDS 10.1" (256.54mm) 1280 x 800
Documents
Technical documentation and resources
