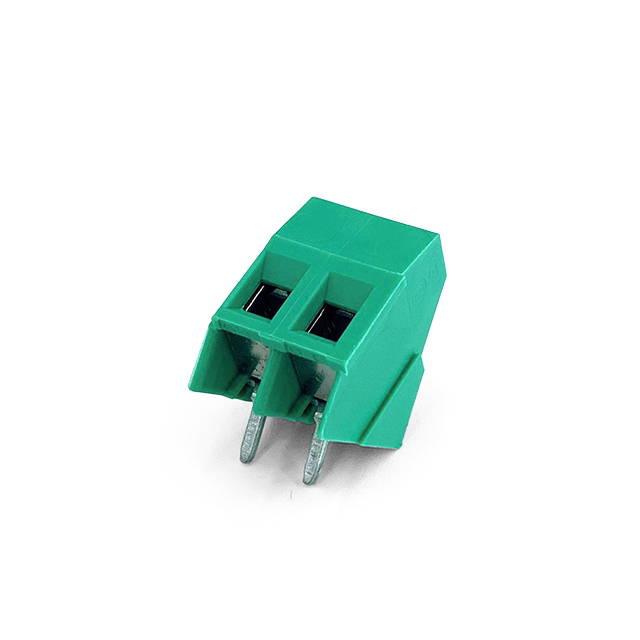

MSM02045
ActiveSauro Electronic Connectors
TERM BLOCK 2POS 35DEG 5.08MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
MSM02045
ActiveSauro Electronic Connectors
TERM BLOCK 2POS 35DEG 5.08MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSM02045 |
|---|---|
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 17.5 A |
| Features | Interlocking (Side) |
| Mating Orientation | 35 ° |
| Mating Orientation | 145 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Screw Material - Plating | Brass - Nickel Plated |
| Screw Thread | M3 |
| Torque - Screw [Max] | 0.6 Nm |
| Torque - Screw [Max] | 5.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In |
| Torque - Screw [Min] | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.29 | |
| 10 | $ 1.07 | |||
| 50 | $ 1.03 | |||
| 100 | $ 0.98 | |||
| 450 | $ 0.94 | |||
| 900 | $ 0.89 | |||
Description
General part information
MSM02045
2 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.200" (5.08mm) Through Hole
