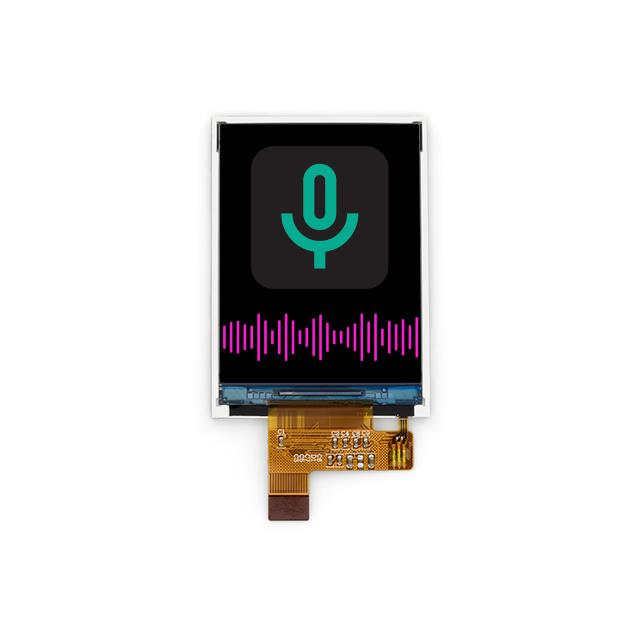

DT024ETFT-IPS-SHB
ActiveDisplaytech
2.4 INCH 240 X 320 IPS TFT DISPL
Deep-Dive with AI
Search across all available documentation for this part.
DT024ETFT-IPS-SHB
ActiveDisplaytech
2.4 INCH 240 X 320 IPS TFT DISPL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DT024ETFT-IPS-SHB |
|---|---|
| Background Color | Black |
| Backlight | LED - White |
| Controller Type | ILI9341 |
| Diagonal Screen Size | 60.96 mm |
| Diagonal Screen Size [custom] | 2.4 in |
| Display Mode | Transmissive |
| Display Type | IPS |
| Dot Pitch [x] | 0.15 mm |
| Dot Pitch [y] | 10.8 mm |
| Dot Pixels | QVGA |
| Dot Pixels [x] | 320 pixels |
| Dot Pixels [y] | 240 pixels |
| Dot Size [custom] | 0.15 mm |
| Dot Size [custom] | 0.05 mm |
| Graphics Color | Green, Red, Blue |
| Interface | SPI |
| Viewing Area [custom] | 37.32 mm |
| Viewing Area [custom] | 49.56 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.76 | |
| 10 | $ 15.66 | |||
| 192 | $ 13.15 | |||
| 576 | $ 12.08 | |||
Description
General part information
DT024ETFT-IPS-SHB
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) IPS (In-Plane Switching) SPI 2.4" (60.96mm) 320 x 240 (QVGA)
Documents
Technical documentation and resources
No documents available
