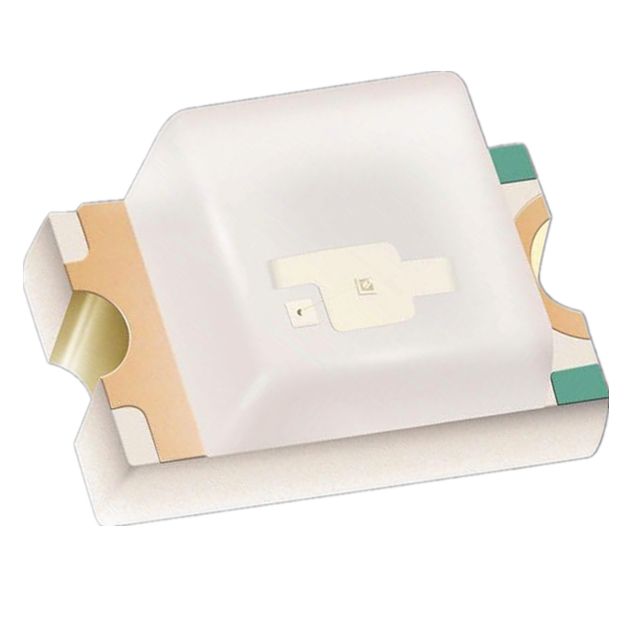

0805YGBD008S01
ActiveORIENTAL TECHNOLOGY
LED YLW-GRN DIFFUSED 2012 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0805YGBD008S01
ActiveORIENTAL TECHNOLOGY
LED YLW-GRN DIFFUSED 2012 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0805YGBD008S01 |
|---|---|
| Color | Yellow-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1.2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 50 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 2012 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Dominant | 568 nm |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.07 | |
Description
General part information
0805YGBD008S01
Yellow-Green 568nm LED Indication - Discrete 1.8V 0805 (2012 Metric)
