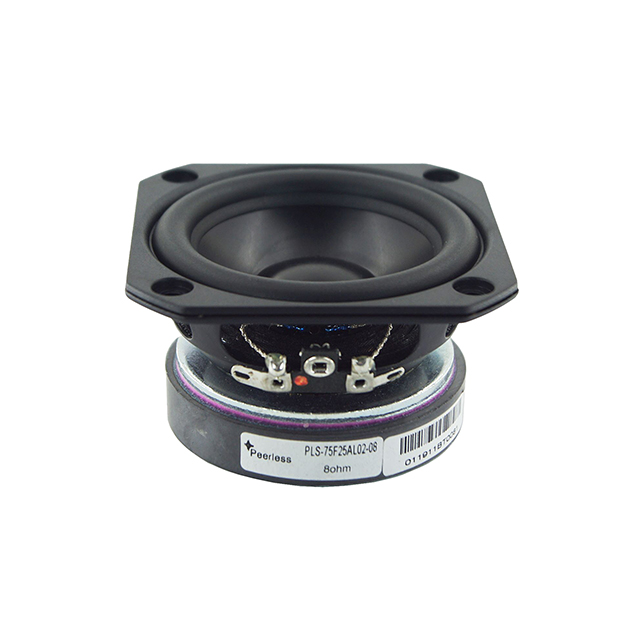

PLS-75F25AL02-08
ActivePeerless by Tymphany
SPEAKR 7.42OHM 25W TOP PORT 84DB
Deep-Dive with AI
Search across all available documentation for this part.
PLS-75F25AL02-08
ActivePeerless by Tymphany
SPEAKR 7.42OHM 25W TOP PORT 84DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PLS-75F25AL02-08 |
|---|---|
| Efficiency - dBA | 84 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 104.81 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 100 Hz |
| Height - Seated (Max) [Max] | 49.8 mm |
| Height - Seated (Max) [Max] | 1.961 in |
| Impedance | 7.42 Ohms |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 25 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 78 mm |
| Size / Dimension [x] | 3.071 " |
| Size / Dimension [y] | 3.071 " |
| Size / Dimension [y] | 78 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.34 | |
| 5 | $ 15.52 | |||
| 50 | $ 14.70 | |||
| 100 | $ 13.88 | |||
| 250 | $ 13.07 | |||
Description
General part information
PLS-75F25AL02-08
7.42 Ohms Full Range Speaker 25 W 100 Hz ~ 20 kHz Top Round, Square Frame
Documents
Technical documentation and resources
No documents available
