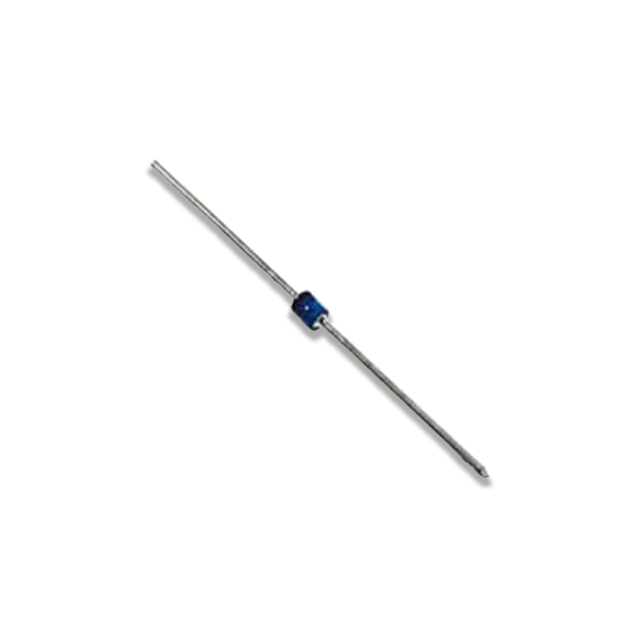

1N5552
ActiveSolid State Inc.
DIODE GEN PURP 600V 3A AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
1N5552
ActiveSolid State Inc.
DIODE GEN PURP 600V 3A AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5552 |
|---|---|
| Capacitance @ Vr, F | 100 pF |
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 200 C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | Axial |
| Reverse Recovery Time (trr) | 2 µs |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | Axial |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 1.07 | |
| Bulk | 1 | $ 5.45 | ||
| 100 | $ 5.06 | |||
Description
General part information
1N5552
Diode 600 V 3A Through Hole Axial
Documents
Technical documentation and resources
No documents available
