Technical Specifications
Parameters and characteristics for this part
| Specification | GS66504B-MR |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 15 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 130 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3-SMD, No Lead |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) [Max] | 7 V, -10 V |
| Vgs(th) (Max) @ Id | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 15.43 | |
| 10 | $ 11.26 | |||
| 100 | $ 11.09 | |||
| Digi-Reel® | 1 | $ 15.43 | ||
| 10 | $ 11.26 | |||
| 100 | $ 11.09 | |||
| Tape & Reel (TR) | 250 | $ 9.48 | ||
Description
General part information

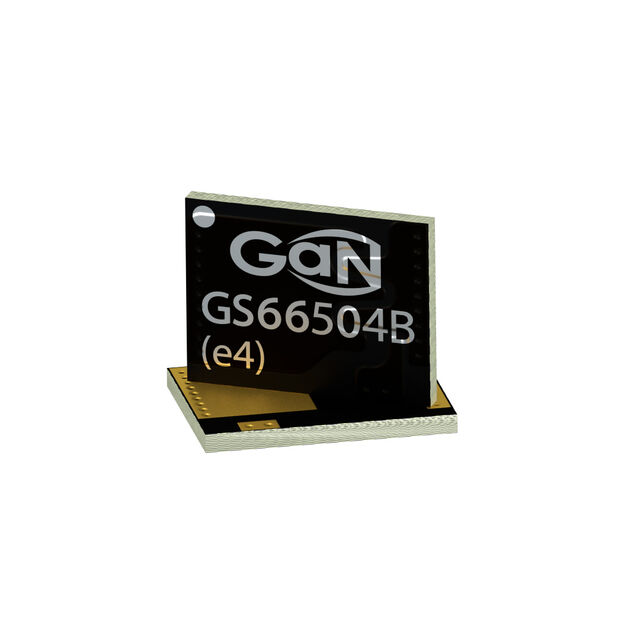

GS66504B-MR
P-Channel 650 V 15A (Tc) Surface Mount
Documents
Technical documentation and resources
No documents available
