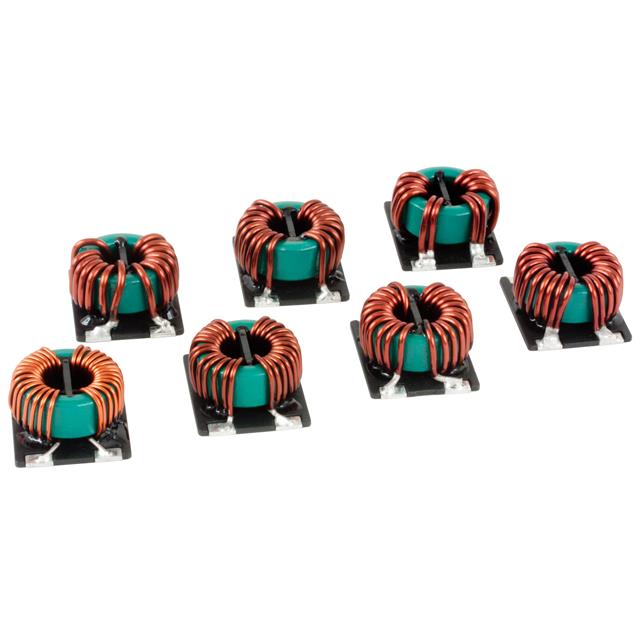

CMX1211Z601B-10
ActiveLaird Technologies - Thermal Materials
CMC 620UH 20A 2LN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMX1211Z601B-10
ActiveLaird Technologies - Thermal Materials
CMC 620UH 20A 2LN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMX1211Z601B-10 |
|---|---|
| Current Rating (Max) [Max] | 20 A |
| DC Resistance (DCR) (Max) [Max] | 3.5 mOhm |
| Filter Type | Power Line |
| Height (Max) | 19 mm |
| Height (Max) [Max] | 0.748 in |
| Inductance @ Frequency | 620 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.67 | |
| 10 | $ 6.73 | |||
| 25 | $ 6.08 | |||
| 50 | $ 5.63 | |||
| 100 | $ 5.21 | |||
| 250 | $ 4.70 | |||
| 500 | $ 4.53 | |||
Description
General part information
CMX1211Z601B-10
620 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 20A DCR 3.5mOhm
