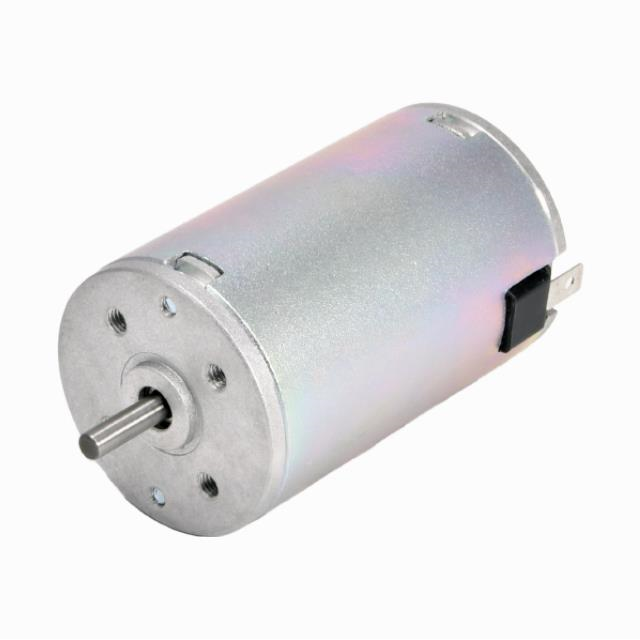

DCM-1006
ActiveMulti Products Company, Inc.
STANDARD MOTOR 12V 4750RPM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DCM-1006
ActiveMulti Products Company, Inc.
STANDARD MOTOR 12V 4750RPM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DCM-1006 |
|---|---|
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Function | Standard |
| Length - Shaft and Bearing | 14.48 mm |
| Length - Shaft and Bearing [x] | 0.57 in |
| RPM | 4748 RPM |
| Size / Dimension [diameter] | 40 mm |
| Size / Dimension [diameter] | 1.575 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 4 oz-in |
| Torque - Rated (oz-in / mNm) | 28.25 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 72.00 | |
Description
General part information
DCM-1006
DC Motor Standard 4748 RPM 12VDC
