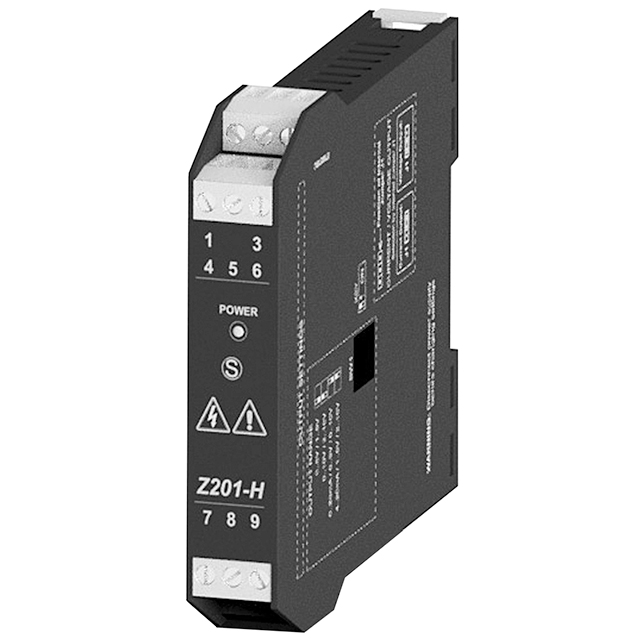

Z201-H
ActiveSeneca
AC TO DC ISOLATOR / CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Z201-H
ActiveSeneca
AC TO DC ISOLATOR / CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Z201-H |
|---|---|
| Input Range (Current, Voltage) [Max] [x] | 10 A |
| Input Range (Current, Voltage) [Min] [x] | 0 mA |
| Input Type | Current |
| Isolation | 4000 V |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output Range [Max] | 20 mA, 10 VDC |
| Output Range [Min] | 0 mA, 0 VDC |
| Output Type | Current, Voltage |
| Termination Style | Spring Terminal |
| Type | Transmitter Isolator |
| Voltage - Supply [Max] | 265 VAC |
| Voltage - Supply [Min] | 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 199.00 | |
Description
General part information
Z201-H
AC TO DC ISOLATOR / CONVERTER
Documents
Technical documentation and resources
