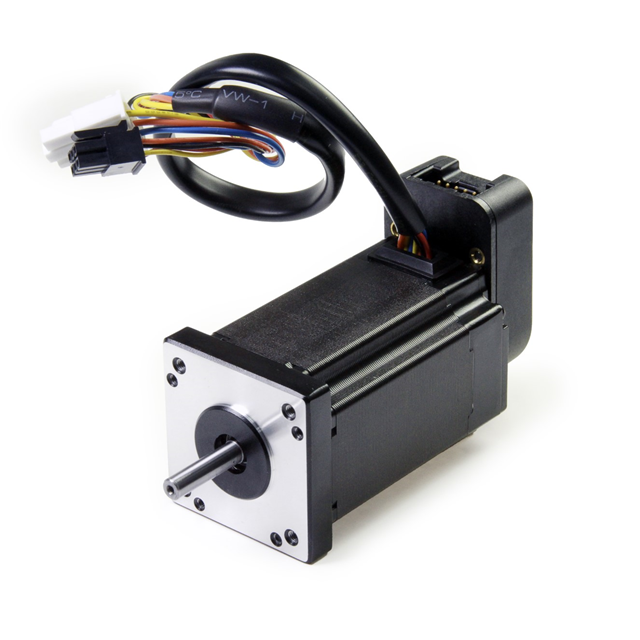

BL17E40-02D-03RO
ActiveLIN ENGINEERING
BLDC MOTOR WITH ENCODER
Deep-Dive with AI
Search across all available documentation for this part.
BL17E40-02D-03RO
ActiveLIN ENGINEERING
BLDC MOTOR WITH ENCODER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BL17E40-02D-03RO |
|---|---|
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Encoder Type | Incremental |
| Function | Standard |
| Length - Shaft and Bearing [x] | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 1.22 in |
| Mounting Hole Spacing | 31 mm |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 90 W |
| RPM | 4000 RPM |
| Size / Dimension [x] | 42 mm |
| Size / Dimension [x] | 1.654 in |
| Size / Dimension [y] | 1.654 " |
| Size / Dimension [y] | 42 mm |
| Torque - Max Momentary (oz-in / mNm) | 430 mNm, 62 oz-in |
| Torque - Rated (oz-in / mNm) | 215.02 mNm |
| Torque - Rated (oz-in / mNm) | 30.45 oz-in |
| Type | DC Motor |
| Voltage - Rated [custom] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 251.96 | |
| 5 | $ 231.55 | |||
Description
General part information
BL17E40-02D-03RO
Brushless (BLDC) DC Motor Standard 4000 RPM 90W Incremental 48VDC
Documents
Technical documentation and resources
No documents available
