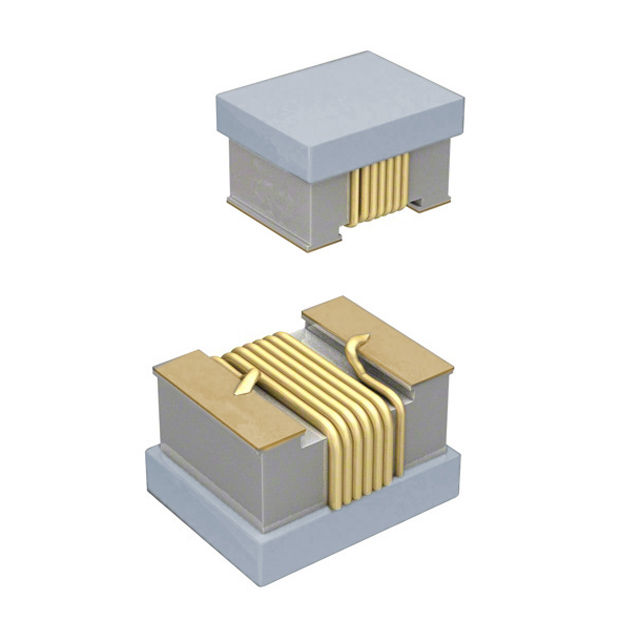

AISM-1812-560K-T
ActiveAbracon LLC
FIXED IND 56UH 135MA 5.5 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AISM-1812-560K-T
ActiveAbracon LLC
FIXED IND 56UH 135MA 5.5 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AISM-1812-560K-T |
|---|---|
| Current Rating (Amps) | 135 mA |
| DC Resistance (DCR) | 5.5 Ohm |
| Frequency - Self Resonant | 9 MHz |
| Inductance | 56 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AISM-1812-560K-T
56 µH Unshielded Drum Core, Wirewound Inductor 135 mA 5.5Ohm Max 1812 (4532 Metric)
