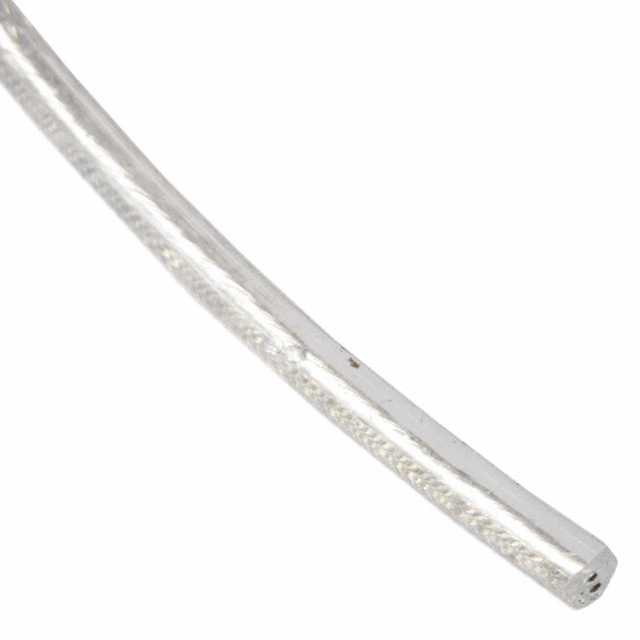

969M101-24-2TPS-025
ActiveCicoil
CBL RIBN 4COND TWIST-PAIR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969M101-24-2TPS-025
ActiveCicoil
CBL RIBN 4COND TWIST-PAIR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 969M101-24-2TPS-025 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Current Rating (Amps) | 8 A |
| Features | Hi-Flex |
| Insulation Resistance | 200 MOhm |
| Jacket (Insulation) Material | Flexx-Sil™ |
| Jacket Color | Clear |
| Length | 25 ft |
| Length | 7.62 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Ratings | CE, UL E324413 |
| Ribbon Thickness | 0.141 " |
| Ribbon Thickness | 3.58 mm |
| Ribbon Width | 6.35 mm |
| Ribbon Width | 0.25 in |
| Shielding | Shielded |
| Voltage | 12 kV |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.47 | |
Description
General part information
969M101-24-2TPS-025
Flat Ribbon Cable Clear 4 (2 Pair Twisted) Conductors Flat Cable 25.0' (7.62m)
