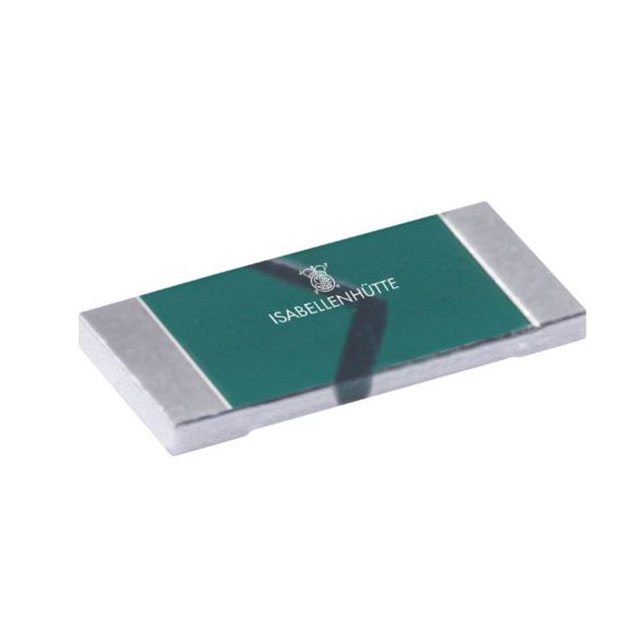

VMK-R300-1.0-U
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.3,
Deep-Dive with AI
Search across all available documentation for this part.
VMK-R300-1.0-U
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.3,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VMK-R300-1.0-U |
|---|---|
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 1.5 W |
| Resistance | 0.3 Ohms |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [x] | 3.05 mm |
| Size / Dimension [y] | 0.06 in |
| Size / Dimension [y] | 1.52 mm |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 20 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 12500 | $ 0.53 | |
Description
General part information
VMK-R300-1.0-U
300 mOhms ±1% 1.5W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
