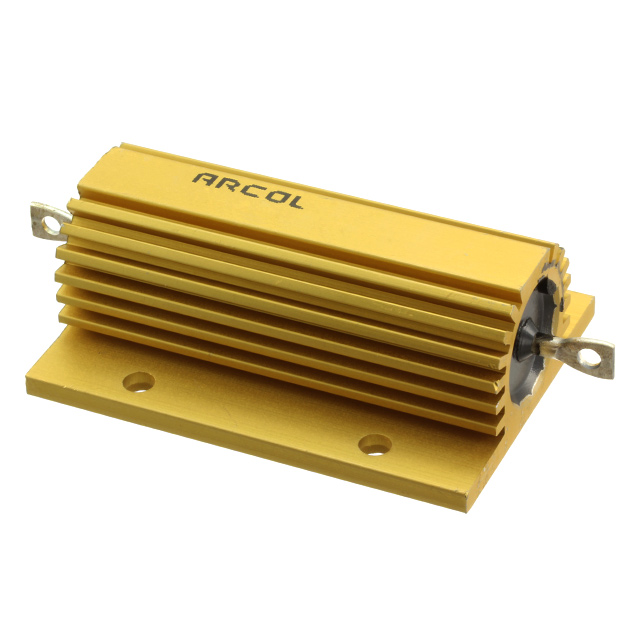

HS100 150R F
ActiveARCOL
RES CHAS MNT 150 OHMS 1% 100W
Deep-Dive with AI
Search across all available documentation for this part.
HS100 150R F
ActiveARCOL
RES CHAS MNT 150 OHMS 1% 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HS100 150R F |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Height - Seated (Max) [Max] | 24.1 mm |
| Height - Seated (Max) [Max] | 0.949 in |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Power (Watts) | 100 W |
| Resistance | 150 Ohms |
| Size / Dimension [x] | 65.2 mm |
| Size / Dimension [x] | 2.567 " |
| Size / Dimension [y] | 1.87 " |
| Size / Dimension [y] | 47.5 mm |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HS100 150R F
150 Ohms ±1% 100W Wirewound Chassis Mount Resistor
Documents
Technical documentation and resources
No documents available
