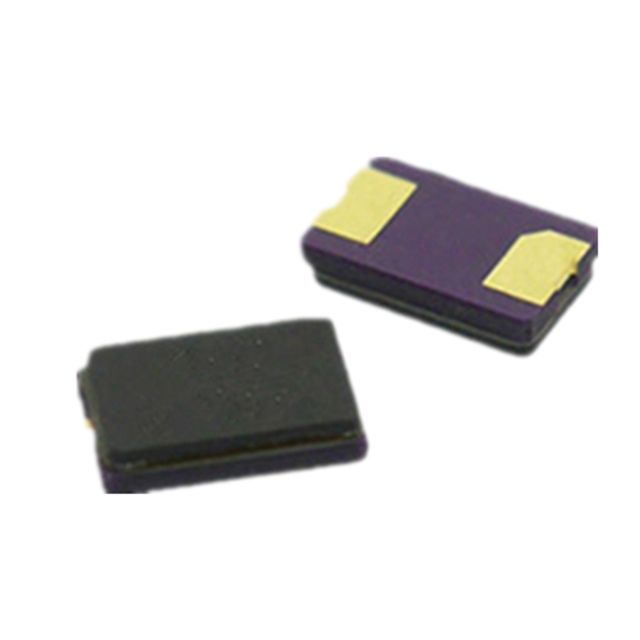

XR9M830400S416
ActiveTGS
CRYSTAL 9.8304MHZ 30PPM, 16PF 2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XR9M830400S416
ActiveTGS
CRYSTAL 9.8304MHZ 30PPM, 16PF 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XR9M830400S416 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 9.8304 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Load Capacitance | 16 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.44 | |
Description
General part information
XR9M830400S416
9.8304 MHz ±30ppm Crystal 16pF 80 Ohms 2-SMD, No Lead
