AT86RF215IQ-ZU
ActiveAtmel
IC RF TXRX 802.15.4 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
AT86RF215IQ-ZU
ActiveAtmel
IC RF TXRX 802.15.4 48QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT86RF215IQ-ZU |
|---|---|
| Current - Receiving [Max] | 33 mA |
| Current - Receiving [Min] | 5 mA |
| Current - Transmitting [Max] | 64 mA |
| Current - Transmitting [Min] | 62 mA |
| Data Rate (Max) | 2.4 Mbps |
| Frequency | 2.4 GHz |
| Frequency [Max] | 510 MHz, 1.02 GHz |
| Frequency [Min] | 389.5 MHz, 779 MHz |
| Modulation | OFDM, O-QPSK, FSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

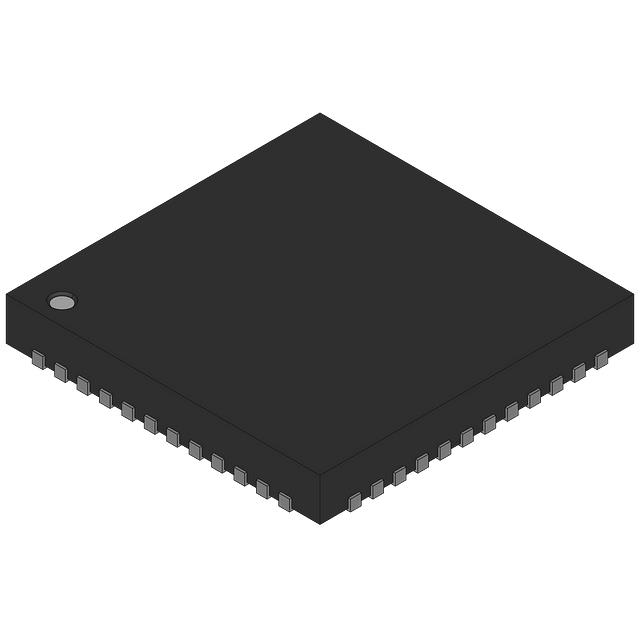

| Package / Case | 48-VFQFN Exposed Pad |
| RF Family/Standard | 802.15.4, General ISM < 1GHz |
| Sensitivity | -123 dBm |
| Serial Interfaces | SPI |
| Supplier Device Package | 48-QFN (7x7) |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 56 | $ 6.62 | |
| Tray | 416 | $ 6.06 | ||
Description
General part information
AT86RF215IQ-ZU
IC RF TxRx Only 802.15.4, General ISM < 1GHz 389.5MHz ~ 510MHz, 779MHz ~ 1.02GHz, 2.4GHz 48-VFQFN Exposed Pad
Documents
Technical documentation and resources
No documents available
