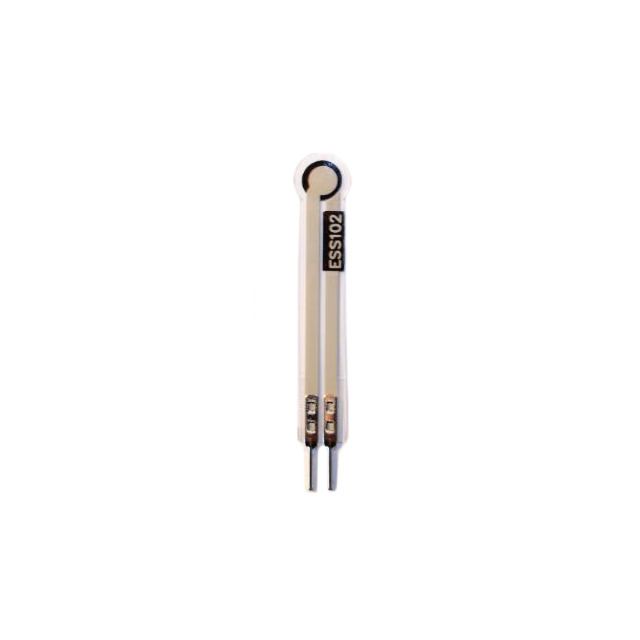

ESS102
ActiveTekscan
FORCE SENSOR 3.8MM SENSE DIA.45N
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESS102
ActiveTekscan
FORCE SENSOR 3.8MM SENSE DIA.45N
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESS102 |
|---|---|
| Actuator Style/Size | 7.62 mm |
| Actuator Style/Size | Round |
| Actuator Type | Flat Membrane |
| Includes | Sensor, Resistor, Capacitors |
| Operating Force | 450 gf |
| Operating Force | 1 lbs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Sensor Type | Force Sensing Resistor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.84 | |
| 5 | $ 12.51 | |||
| 10 | $ 11.63 | |||
| 25 | $ 10.55 | |||
| 50 | $ 9.81 | |||
| 100 | $ 9.12 | |||
| 500 | $ 7.69 | |||
| 1000 | $ 7.15 | |||
Description
General part information
ESS102
Force Sensing Resistor Force Sensor 0.45kgf (1lbs)
Documents
Technical documentation and resources
