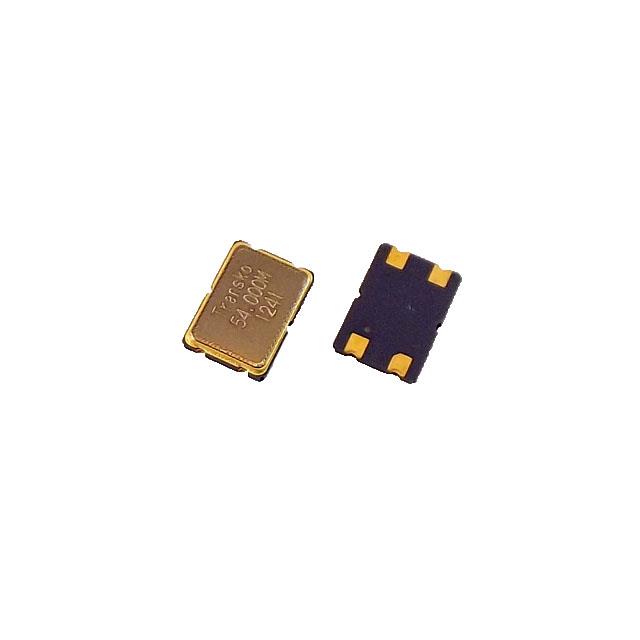

CS75-F1010FM15-13.824M-TR
ActiveTransko Electronics, Inc.
13.824MHZ CRYSTAL, 15PF LOAD, FU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS75-F1010FM15-13.824M-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 13.824 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.043 in |
| Height - Seated (Max) [Max] [z] | 1.1 mm |
| Load Capacitance | 15 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.65 | |
Description
General part information
CS75-F1010FM15-13.824M-TR
13.824 MHz ±10ppm Crystal 15pF 60 Ohms 4-SMD, No Lead
