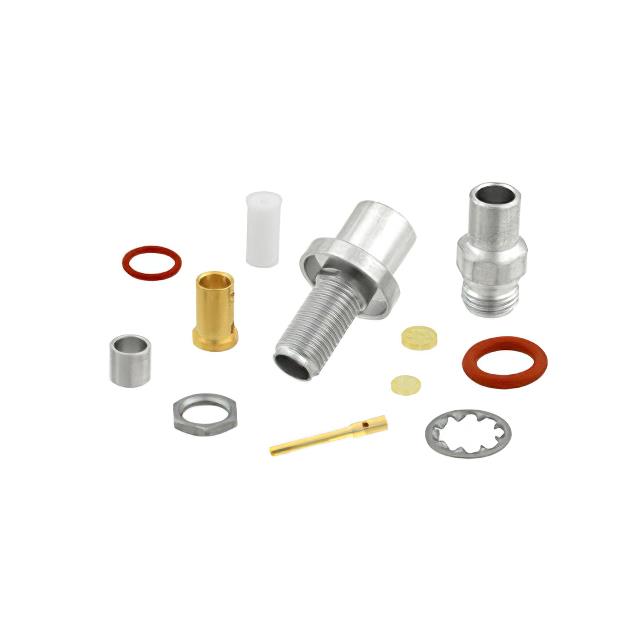

PE45441
ActivePasternack
SMA FEMALE BULKHEAD MOUNT CONNEC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE45441
ActivePasternack
SMA FEMALE BULKHEAD MOUNT CONNEC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45441 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 22 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 79.99 | |
| 25 | $ 75.99 | |||
| 50 | $ 71.99 | |||
| 100 | $ 68.79 | |||
Description
General part information
PE45441
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
