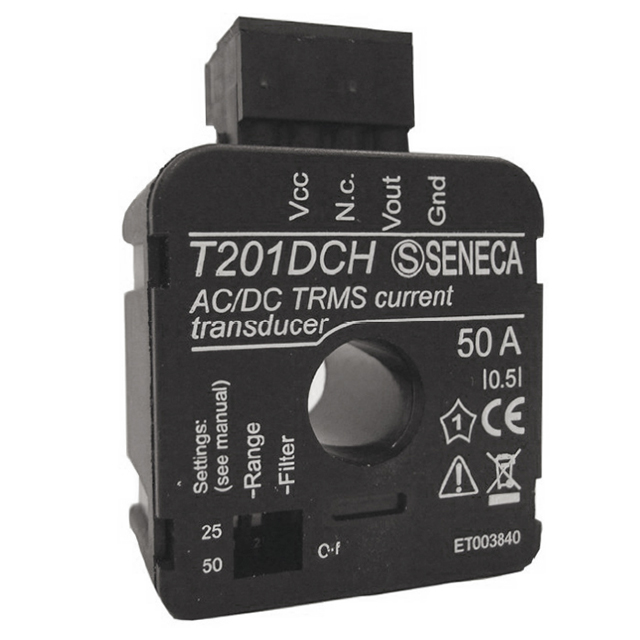

T201DCH
ActiveSeneca
TRMS CURRENT TRANSDUCER, 50 AAC/
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T201DCH
ActiveSeneca
TRMS CURRENT TRANSDUCER, 50 AAC/
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T201DCH |
|---|---|
| Accuracy | 1 % |
| Approval Agency | UL, CE |
| Input Range [Max] | 50 VDC, 50 VAC |
| Input Range [Min] | 0 VDC, 0 VAC |
| Isolation | 3000 VAC |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output [Max] | 10 V |
| Output [Min] | 0 mV |
| Response Time | 800 ms |
| Termination Style | Spring Terminal |
| Type | True RMS AC Voltage Transducer |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 119.00 | |
Description
General part information
T201DCH
True RMS AC Voltage Transducer 0 ~ 50VAC, 0 ~ 50VDC (Configurable) Input 0 ~ 10VDC Output 10 ~ 28VDC DIN Rail
