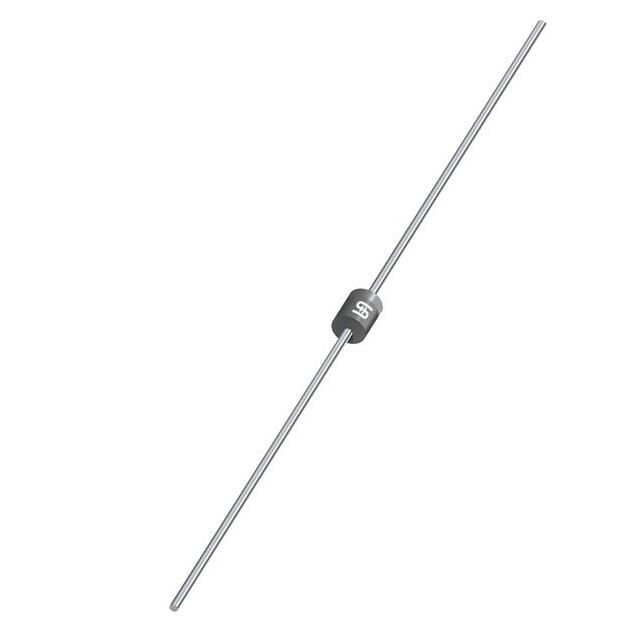

HT14G-K
ObsoleteTaiwan Semiconductor Corporation
DIODE STANDARD 300V 1A TS1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HT14G-K
ObsoleteTaiwan Semiconductor Corporation
DIODE STANDARD 300V 1A TS1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HT14G-K |
|---|---|
| Capacitance @ Vr, F | 15 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | T-18, Axial |
| Reverse Recovery Time (trr) | 50 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TS-1 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HT14G-K
Diode 300 V 1A Through Hole TS-1
