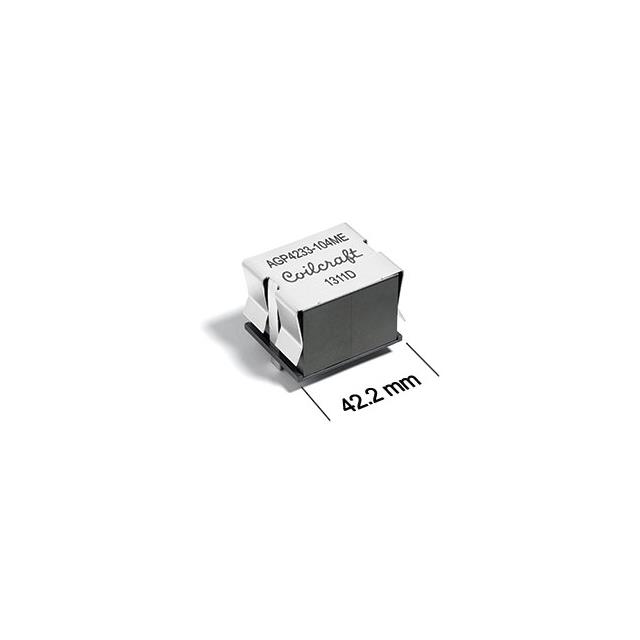

AGP4233-153ME
ActiveCoilcraft
FIXED IND 15UH 34A 2.95MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AGP4233-153ME
ActiveCoilcraft
FIXED IND 15UH 34A 2.95MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AGP4233-153ME |
|---|---|
| Current - Saturation (Isat) | 45 A |
| Current Rating (Amps) | 34 A |
| DC Resistance (DCR) | 2.95 mOhm |
| Frequency - Self Resonant | 15.2 MHz |
| Height - Seated (Max) [Max] [z] | 1.102 in |
| Height - Seated (Max) [Max] [z] | 28 mm |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 1.547 in |
| Size / Dimension [x] | 39.3 mm |
| Size / Dimension [y] | 35.8 mm |
| Size / Dimension [y] | 1.409 in |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AGP4233-153ME
15 µH Shielded Wirewound Inductor 34 A 2.95mOhm Max Nonstandard
