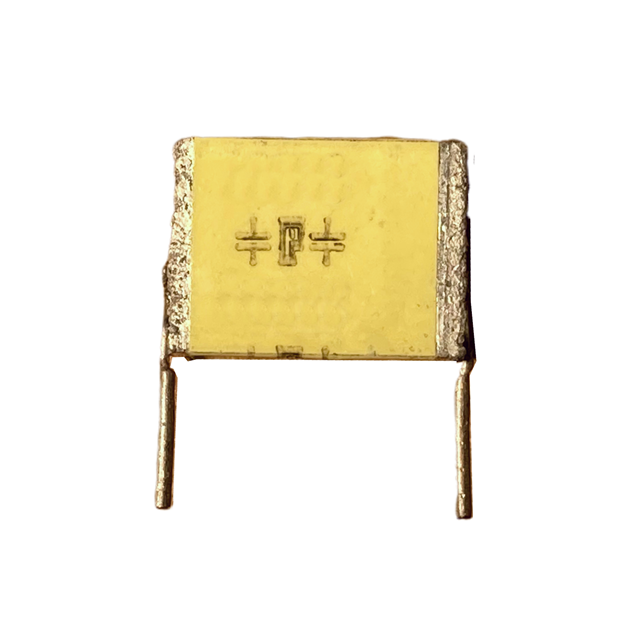

225K100RA4
ActivePaktron
CAPACITOR MLP 2.2UF 100V RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
225K100RA4
ActivePaktron
CAPACITOR MLP 2.2UF 100V RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 225K100RA4 |
|---|---|
| Applications | High Pulse, EMI, DV/DT, RFI Suppression |
| Capacitance | 2.2 µF |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Height - Seated (Max) [Max] [z] | 0.283 in |
| Height - Seated (Max) [Max] [z] | 7.2 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 11.4 mm |
| Size / Dimension [x] | 0.449 " |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 80 V |
| Voltage Rating - DC | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.78 | |
| 10 | $ 2.64 | |||
| 50 | $ 2.22 | |||
| 100 | $ 2.09 | |||
| 500 | $ 1.85 | |||
| 1000 | $ 1.74 | |||
| 2500 | $ 1.70 | |||
Description
General part information
225K100RA4
2.2 µF Film Capacitor 80V 100V Polyester, Metallized Radial
