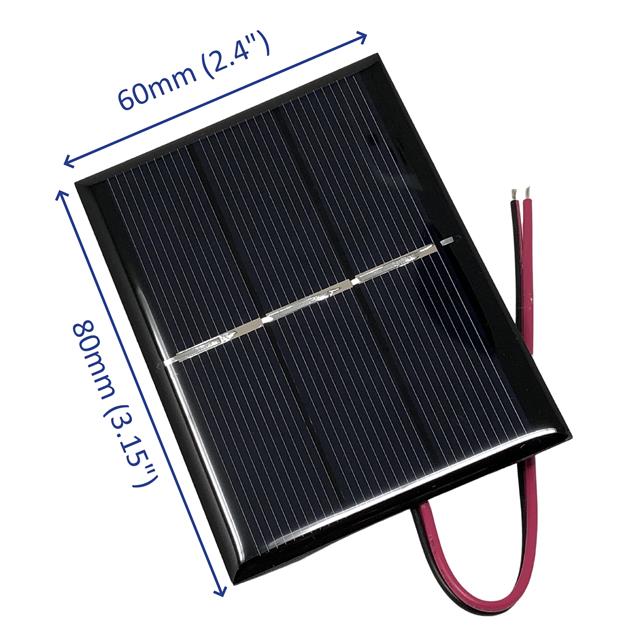

SP-80X60-1-DK
ActiveAMX Solar
POLYCRYS SOLAR CELL 1.5V 670MW -
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP-80X60-1-DK
ActiveAMX Solar
POLYCRYS SOLAR CELL 1.5V 670MW -
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-80X60-1-DK |
|---|---|
| Current - Short Circuit (Isc) | 490 mA |
| Current @ Pmpp | 440 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) - Max [Max] | 670 mW |
| Size / Dimension [x] | 3.149 in |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [y] | 2.362 in |
| Size / Dimension [z] | 2 mm |
| Size / Dimension [z] | 0.079 " |
| Type | Polycrystalline |
| Voltage - Open Circuit | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 12.00 | |
| 10 | $ 10.18 | |||
| 50 | $ 9.08 | |||
| 100 | $ 8.64 | |||
| 250 | $ 8.09 | |||
| 500 | $ 7.70 | |||
| 1000 | $ 7.50 | |||
Description
General part information
SP-80X60-1-DK
Polycrystalline Solar Cell 670 mW 1.8 V
Documents
Technical documentation and resources
