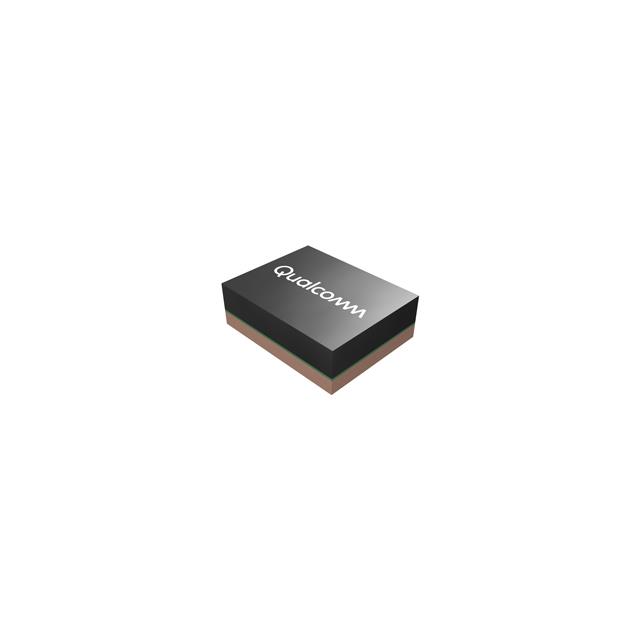

B39522B8377L210
ActiveQualcomm (RF front-end (RFFE) filters)
RF FILTER 5.25GHZ 5SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B39522B8377L210
ActiveQualcomm (RF front-end (RFFE) filters)
RF FILTER 5.25GHZ 5SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B39522B8377L210 |
|---|---|
| Bandwidth | 160 MHz |
| Frequency | 5.25 GHz |
| Height (Max) | 0.64 mm |
| Height (Max) [Max] | 0.025 in |
| Insertion Loss | 2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Ripple | 0.6 dB |
| Size / Dimension [x] | 0.055 in |
| Size / Dimension [x] | 1.4 mm |
| Size / Dimension [y] | 0.043 in |
| Size / Dimension [y] | 1.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.28 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.78 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.28 | ||
| 10 | $ 1.04 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.78 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.69 | |||
| Tape & Reel (TR) | 5000 | $ 0.60 | ||
| 10000 | $ 0.57 | |||
| 15000 | $ 0.55 | |||
Description
General part information
B39522B8377L210
5.25GHz Center Frequency RF Filter (Radio Frequency) 160MHz Bandwidth 2dB 5-SMD, No Lead
Documents
Technical documentation and resources
