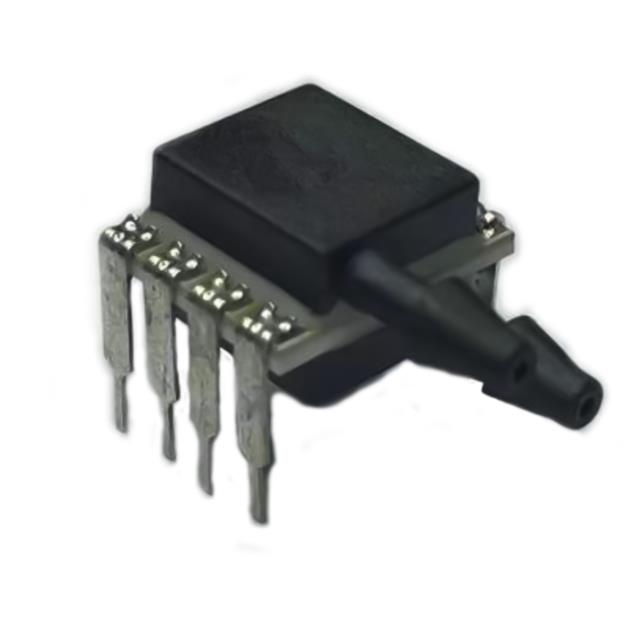

MCT-4A HBDT005MB31
ActiveAdvanced Sensor Design
SENSOR 0.072PSID 0.14" 3.0V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCT-4A HBDT005MB31 |
|---|---|
| Accuracy | 3 % |
| Applications | Board Mount |
| Features | Temperature Compensated, Amplified Output |
| Maximum Pressure | 1 PSI |
| Maximum Pressure | 7 kPa |
| Mounting Type | Through Hole |
| Operating Pressure [Max] | 0.072 PSI |
| Operating Pressure [Max] | 0.5 kPa |
| Operating Pressure [Min] | -1.72 PSI |
| Operating Pressure [Min] | -1.5 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 3 V |
| Output [Min] | 0.3 V |
| Output Type | Analog Voltage |
| Package / Case | 8-DIP Module |
| Port Size | Tube, Dual, Male |
| Port Size | 0.14 " |
| Port Size | 3.5 mm |
| Port Style | Barbed |
| Pressure Type | Differential |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 3.465 V |
| Voltage - Supply [Min] | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 48.00 | |
Description
General part information
MCT-4A HBDT005MB31
Pressure Sensor -0.072PSI ~ 0.072PSI (-0.50kPa ~ 0.50kPa) Differential Male - 0.14" (3.5mm) Tube, Dual 0.3 V ~ 3.0 V 8-DIP Module
