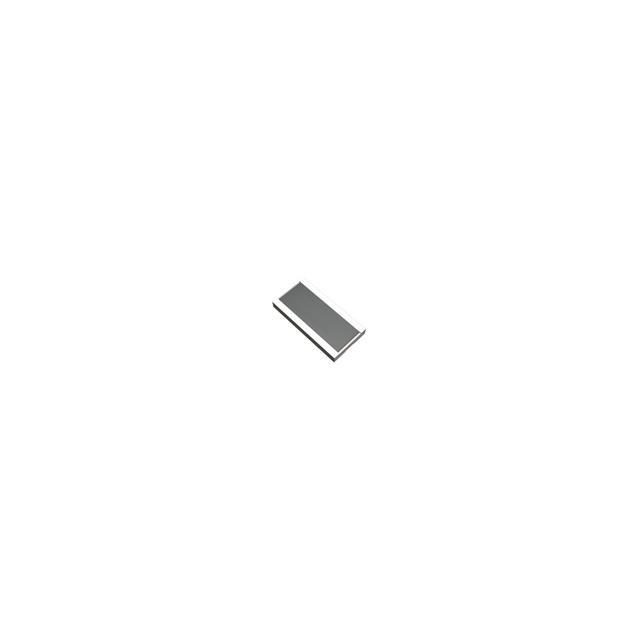

LTR100JZPJLR39
ActiveRohm Semiconductor
RES SMD 0.39 OHM 5% 3W 2512 WIDE
Deep-Dive with AI
Search across all available documentation for this part.
LTR100JZPJLR39
ActiveRohm Semiconductor
RES SMD 0.39 OHM 5% 3W 2512 WIDE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTR100JZPJLR39 |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Wide 2512 (6432 Metric) |
| Package / Case | 1225 |
| Power (Watts) | 3 W |
| Ratings | AEC-Q200 |
| Resistance | 390 mOhms |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.252 in |
| Size / Dimension [y] | 6.4 mm |
| Supplier Device Package | 1225 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.37 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.73 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 1.37 | ||
| 10 | $ 0.86 | |||
| 25 | $ 0.73 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.41 | |||
| Tape & Reel (TR) | 4000 | $ 0.36 | ||
| 8000 | $ 0.34 | |||
| 12000 | $ 0.32 | |||
| 20000 | $ 0.31 | |||
| 28000 | $ 0.30 | |||
Description
General part information
LTR100JZPJLR39
390 mOhms ±5% 3W Chip Resistor Wide 2512 (6432 Metric), 1225 Automotive AEC-Q200, Current Sense Thick Film
Documents
Technical documentation and resources
No documents available
