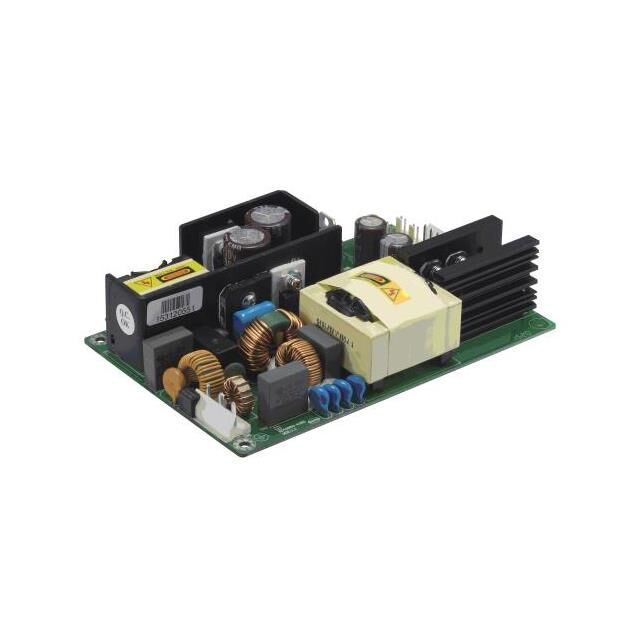

MPE-K253
ActiveMagic Power
12V / 20.9A 250W CONVECTION COOL
Deep-Dive with AI
Search across all available documentation for this part.
MPE-K253
ActiveMagic Power
12V / 20.9A 250W CONVECTION COOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPE-K253 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 20.9 A |
| Efficiency | 90 % |
| Features | DC Input Capable, PFC, Remote Sense, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 251 W |
| Size / Dimension [x] | 152.4 mm |
| Size / Dimension [x] | 6 in |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC, 373 VDC |
| Voltage - Input [Min] | 125 VDC, 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 61.00 | |
| 5 | $ 60.00 | |||
| 10 | $ 59.00 | |||
| 20 | $ 58.00 | |||
| 50 | $ 55.00 | |||
Description
General part information
MPE-K253
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 125 ~ 373 VDC Input
