HF601-40-12
ActiveYamaichi Electronics

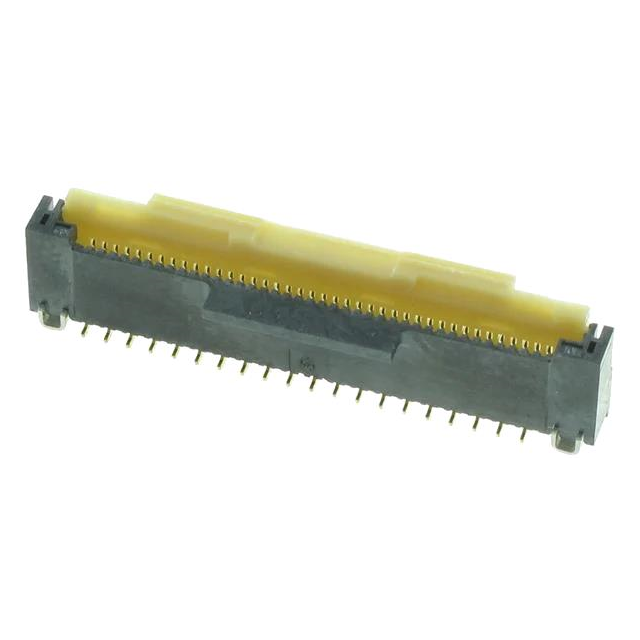

CONN FFC VERT 40POS 0.5MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HF601-40-12
ActiveYamaichi Electronics
CONN FFC VERT 40POS 0.5MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HF601-40-12 |
|---|---|
| Actuator Material | Polyamide (PA9T), Nylon 9T |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Gold-Nickel |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.079 in |
| Height Above Board | 2 mm |
| Housing Color | White |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 2.58 | |
| 10 | $ 2.35 | |||
| 25 | $ 2.20 | |||
| 50 | $ 2.11 | |||
Description
General part information
HF601-40-12
40 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
