CR4120-75
ActiveCR Magnetics Inc.
SENSOR CURRENT XFMR 75A AC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR4120-75
ActiveCR Magnetics Inc.
SENSOR CURRENT XFMR 75A AC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR4120-75 |
|---|---|
| Accuracy | 0.5 % |
| Current - Sensing | 75 A |
| Current - Supply (Max) [Max] | 40 mA |
| For Measuring | AC |
| Frequency [Max] | 5 kHz |
| Frequency [Min] | 20 Hz |
| Mounting Type | DIN Rail, Panel |
| Number of Channels | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output | Ratiometric |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 250 ms |
| Sensor Type | Transformer w/Conditioning |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 231.96 | |
| 10 | $ 212.63 | |||
Description
General part information
CR4120-75

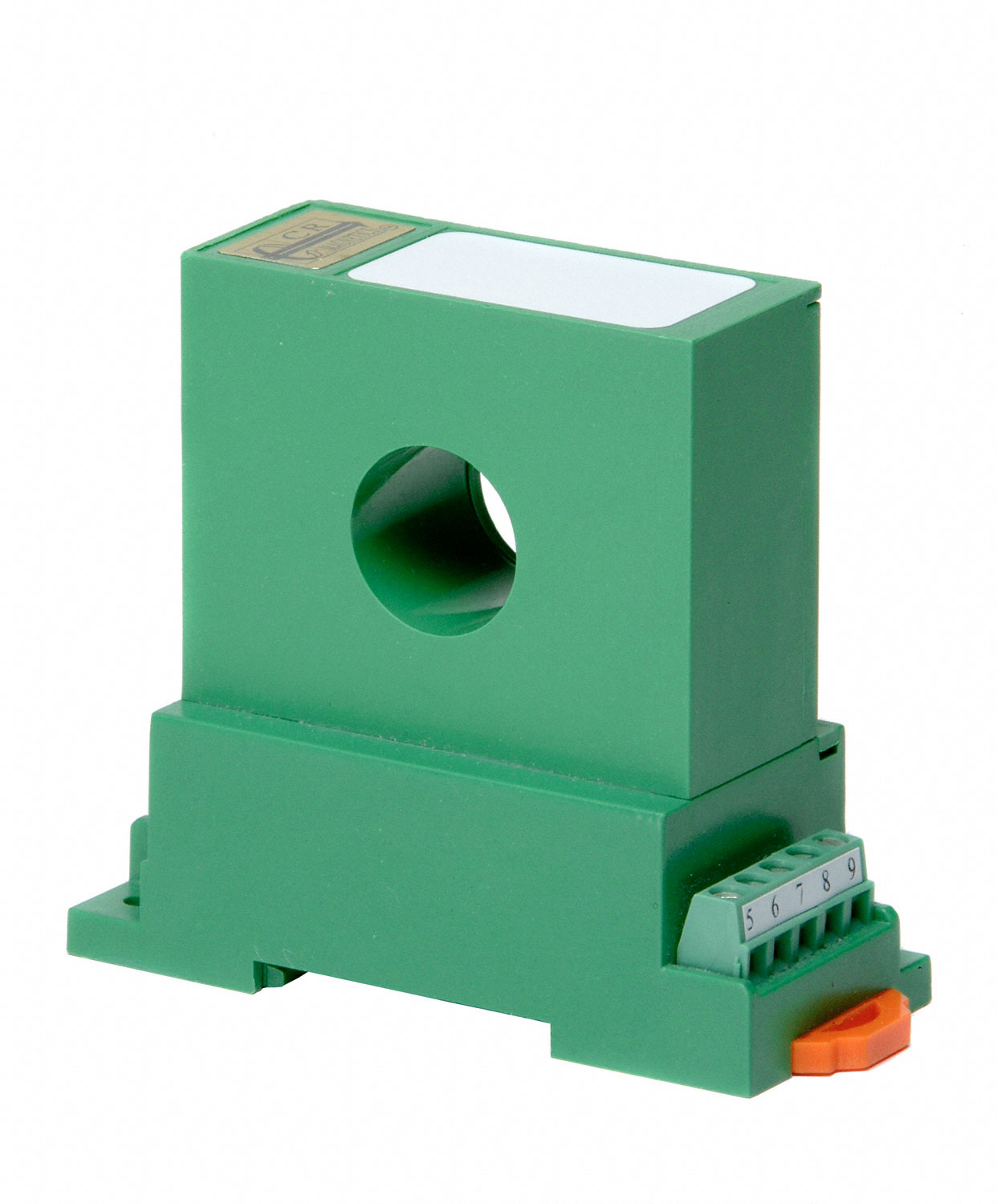

Current Sensor 75A 1 Channel Transformer w/Conditioning Bidirectional Module
