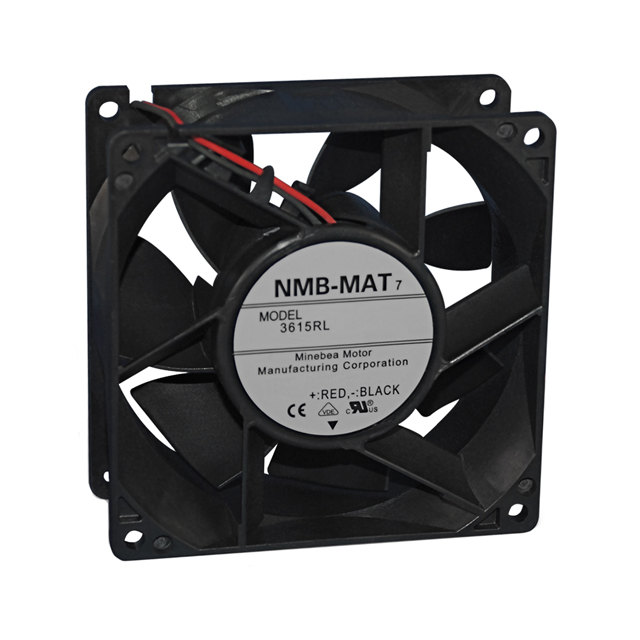

3615RL-04W-B49-B00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 92X38.4MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
3615RL-04W-B49-B00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 92X38.4MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3615RL-04W-B49-B00 |
|---|---|
| Air Flow | 3.32 mł/min |
| Air Flow | 118.6 CFM |
| Approval Agency | UL, VDE, CE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 56.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 13.8 W |
| RPM | 5700 RPM |
| Static Pressure | 187 Pa |
| Static Pressure | 0.751 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 229.97 g |
| Weight | 0.507 lb |
| Width [y] | 38.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3615RL-04W-B49-B00
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 118.6 CFM (3.32m³/min) 3 Wire Leads
