AWCM0011060518NG00
ActivePulse Electronics
INDUCTOR RF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AWCM0011060518NG00
ActivePulse Electronics
INDUCTOR RF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWCM0011060518NG00 |
|---|---|
| Current Rating (Amps) | 370 mA |
| DC Resistance (DCR) | 270 mOhm |
| Frequency - Self Resonant | 4.5 GHz |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Inductance | 18 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Q @ Freq | 250 MHz, 25 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.05 mm |
| Size / Dimension [x] | 0.041 in |
| Size / Dimension [y] | 0.6 mm |
| Size / Dimension [y] | 0.024 " |
| Supplier Device Package | 0402 |
| Tolerance | 2 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 28000 | $ 0.06 | |
Description
General part information
AWCM0011060518NG00

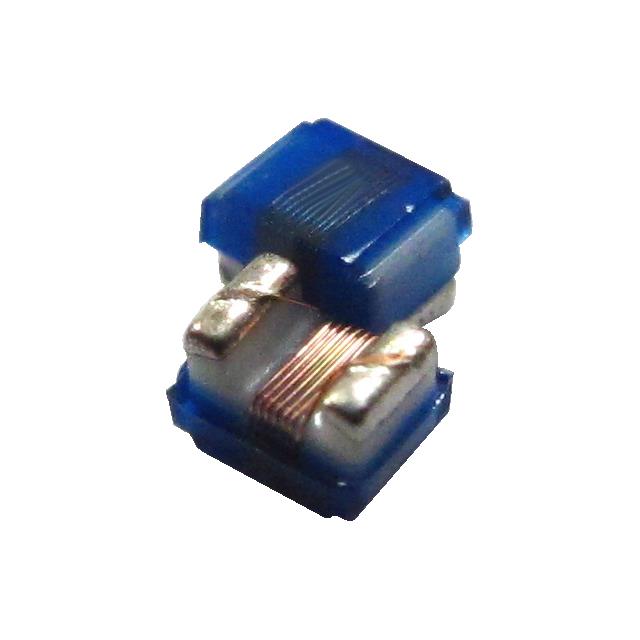

18 nH Unshielded Drum Core, Wirewound Inductor 370 mA 270mOhm Max 0402 (1005 Metric)
