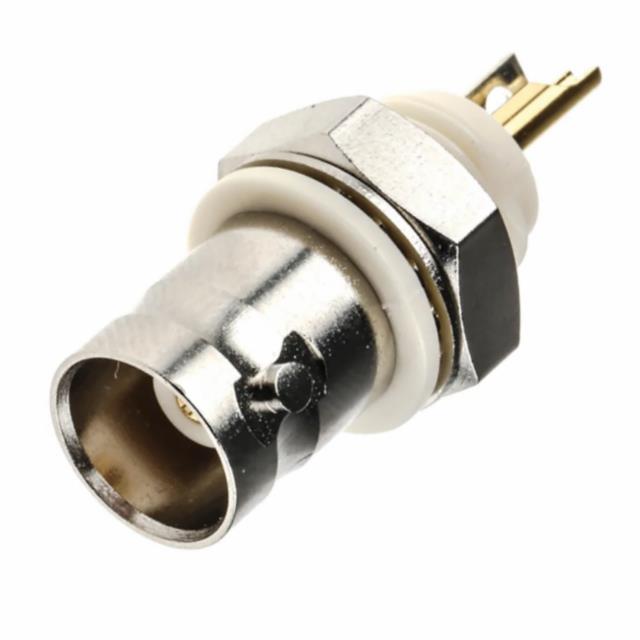

6807371C108
ActiveEase Electronics
CONN BNC JACK 50 OHM PANEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6807371C108
ActiveEase Electronics
CONN BNC JACK 50 OHM PANEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6807371C108 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -50 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.77 | |
| 10 | $ 5.18 | |||
| 100 | $ 4.02 | |||
| 1000 | $ 3.18 | |||
Description
General part information
6807371C108
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
