12.95546
ActiveGeyer Electronic America, Inc.

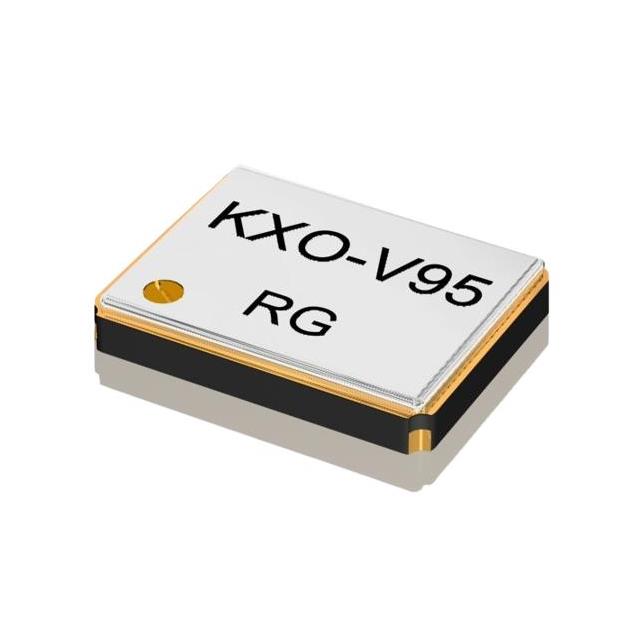

XTAL OSC XO 26.0000MHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12.95546
ActiveGeyer Electronic America, Inc.
XTAL OSC XO 26.0000MHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12.95546 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 26 MHz |
| Frequency Stability | 50 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.78 | |||
| 50 | $ 0.70 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.78 | |||
| 50 | $ 0.70 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.61 | |||
| Tape & Reel (TR) | 1000 | $ 0.58 | ||
| 2000 | $ 0.56 | |||
| 3000 | $ 0.54 | |||
| 5000 | $ 0.52 | |||
| 7000 | $ 0.51 | |||
| 10000 | $ 0.50 | |||
Description
General part information
12.95546
26 MHz XO (Standard) Oscillator 4-SMD, No Lead
