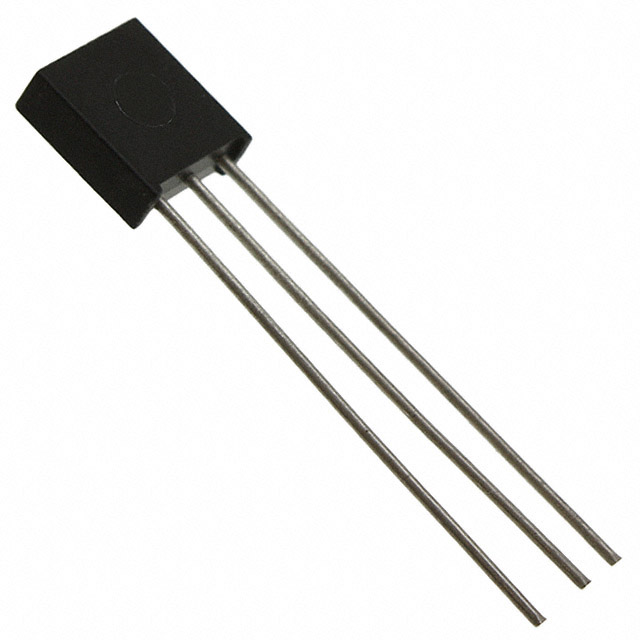

Y0006V0483FF0L
ActiveVPG Foil Resistors
RES METAL FOIL NET 8.06K OHM/20K OHM 1% 0.2W(1/5W) ±2PPM/°C VOLT/D MOLDED 3-PIN SIP PIN THRU-HOLE BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Y0006V0483FF0L
ActiveVPG Foil Resistors
RES METAL FOIL NET 8.06K OHM/20K OHM 1% 0.2W(1/5W) ±2PPM/°C VOLT/D MOLDED 3-PIN SIP PIN THRU-HOLE BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Y0006V0483FF0L |
|---|---|
| Applications | Voltage Divider (TCR Matched) |
| Circuit Type | Voltage Divider |
| Height - Seated (Max) [Max] | 0.32 in |
| Height - Seated (Max) [Max] | 8.13 mm |
| Mounting Type | Through Hole |
| Number of Pins | 3 |
| Number of Resistors | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial - 3 Leads |
| Resistor Matching Ratio | 1 % |
| Resistor-Ratio-Drift | 0.5 ppm/°C |
| Size / Dimension [x] | 7.49 mm |
| Size / Dimension [x] | 0.295 in |
| Size / Dimension [y] | 2.54 mm |
| Size / Dimension [y] | 0.1 in |
| Temperature Coefficient | 2 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 29.39 | |
Description
General part information
Y0006V0483FF0L
8.06k, 20k Ohm ±1% 100mW Power Per Element Voltage Divider 2 Resistor Network/Array ±2ppm/°C Radial - 3 Leads
