BU-4150074024

Active

Mueller Electric Co

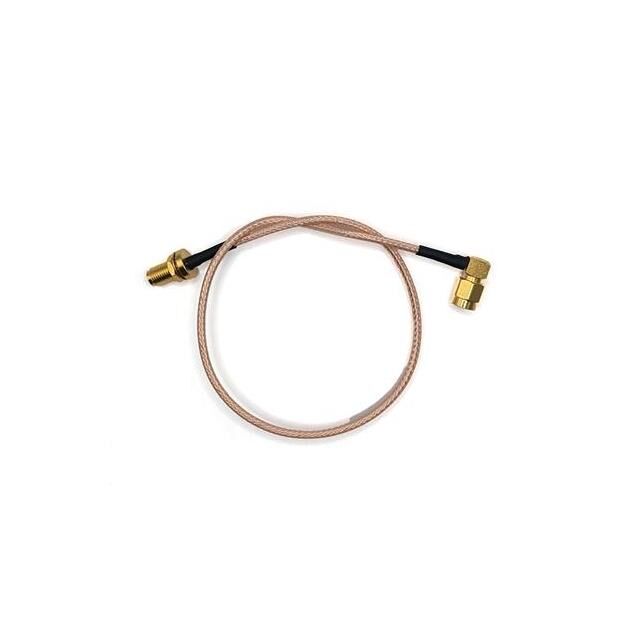

RF / COAXIAL CABLE ASSEMBLY, 6GHZ, 90° SMA PLUG TO SMA BULKHEAD JACK, RG316, 50 OHM, 24 ", 609.6 MM

Search across all available documentation for this part.

Active

Mueller Electric Co

RF / COAXIAL CABLE ASSEMBLY, 6GHZ, 90° SMA PLUG TO SMA BULKHEAD JACK, RG316, 50 OHM, 24 ", 609.6 MM

Technical Specifications

Parameters and characteristics for this part

Specification	BU-4150074024

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA RG-316 24.00" (609.60mm)
