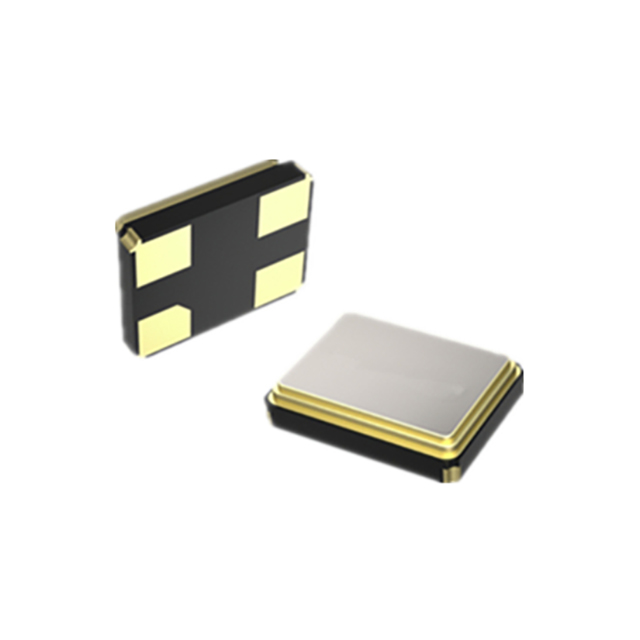

XF25M00000S416
ActiveTGS
CRYSTAL 25M 10PPM,16PF 4 PADS, S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XF25M00000S416
ActiveTGS
CRYSTAL 25M 10PPM,16PF 4 PADS, S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XF25M00000S416 |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 25 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Load Capacitance | 16 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.17 | |
Description
General part information
XF25M00000S416
25 MHz ±10ppm Crystal 16pF 60 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
