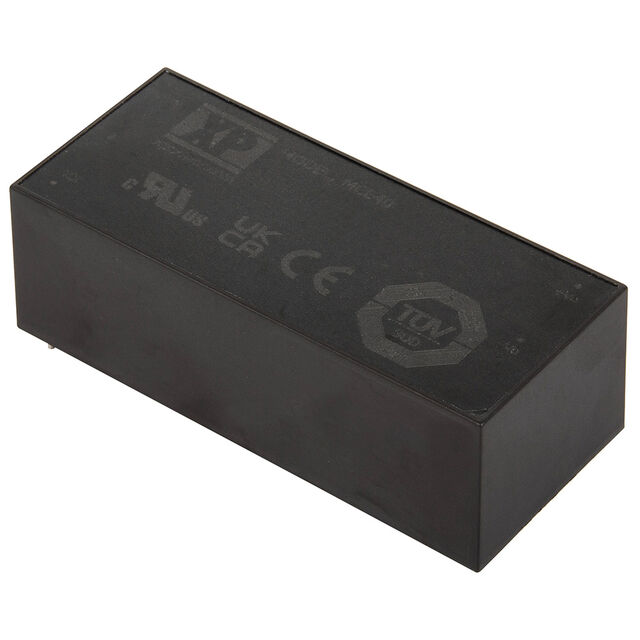

MCE40US12-P
ActiveXP POWER
AC/DC CONVERTER 12V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MCE40US12-P
ActiveXP POWER
AC/DC CONVERTER 12V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCE40US12-P |
|---|---|
| Applications | Medical |
| Approval Agency | CB, UL, CE, UKCA, TUV |
| Current - Output (Max) [Max] | 3.33 A |
| Efficiency | 86 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation | 2 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 85 mm |
| Size / Dimension [x] | 3.35 in |
| Size / Dimension [y] | 35.1 mm |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [z] | 1.09 " |
| Size / Dimension [z] | 27.7 mm |
| Standard Number | 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.60 | |
| 5 | $ 25.80 | |||
| 10 | $ 25.00 | |||
| 25 | $ 23.94 | |||
| 100 | $ 22.34 | |||
Description
General part information
MCE40US12-P
Open Frame AC DC Converters 1 Output 12V 3.33A 80 ~ 264 VAC Input
