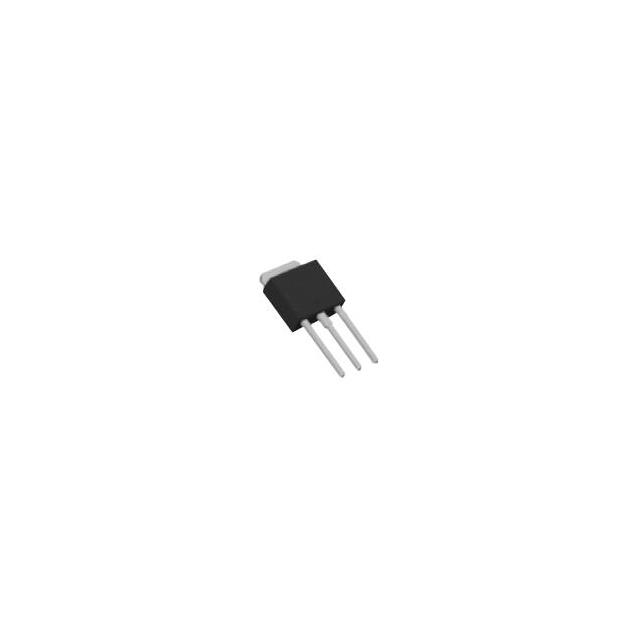

GSGG6504
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 4.00A, 650
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSGG6504
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 4.00A, 650
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSGG6504 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 12 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 304 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | IPAK, TO-251-3 Short Leads, TO-251AA |
| Power Dissipation (Max) [Max] | 41 W |
| Rds On (Max) @ Id, Vgs | 1.1 Ohm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 30 V |
| Vgs(th) (Max) @ Id | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.34 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.37 | |||
| 5000 | $ 0.34 | |||
Description
General part information
GSGG6504
N-Channel 650 V 4A (Tc) 41W (Tc) Through Hole TO-251
