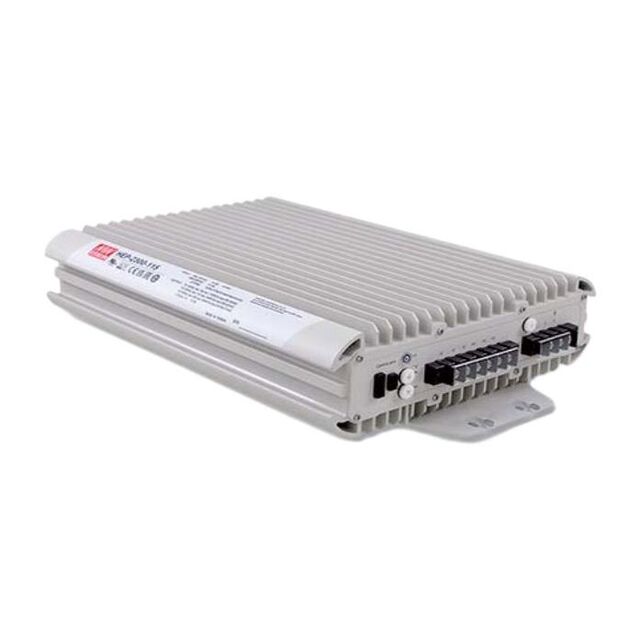

HEP-2300-230W
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 230V 2.3KW
Deep-Dive with AI
Search across all available documentation for this part.
HEP-2300-230W
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 230V 2.3KW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HEP-2300-230W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKCA, CB, TUV, EAC, cURus |
| Current - Output 1 | 10 A |
| Efficiency | 95.5 % |
| Features | DC Input Capable, Remote On/Off, PMBus™, IP67, PFC, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 2.3 kW |
| Size / Dimension [x] | 14.76 in |
| Size / Dimension [x] | 375 mm |
| Size / Dimension [y] | 280 mm |
| Size / Dimension [y] | 11.02 in |
| Size / Dimension [z] | 88 mm |
| Size / Dimension [z] | 3.46 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 431 VDC, 305 VAC |
| Voltage - Input [Min] | 250 VDC, 90 VAC |
| Voltage - Isolation | 6000 V |
| Voltage - Output 1 | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 897.30 | |
| 5 | $ 845.33 | |||
| 10 | $ 823.89 | |||
Description
General part information
HEP-2300-230W
Enclosed AC DC Converters 1 Output 230V 90 ~ 305 VAC, 250 ~ 431 VDC Input
