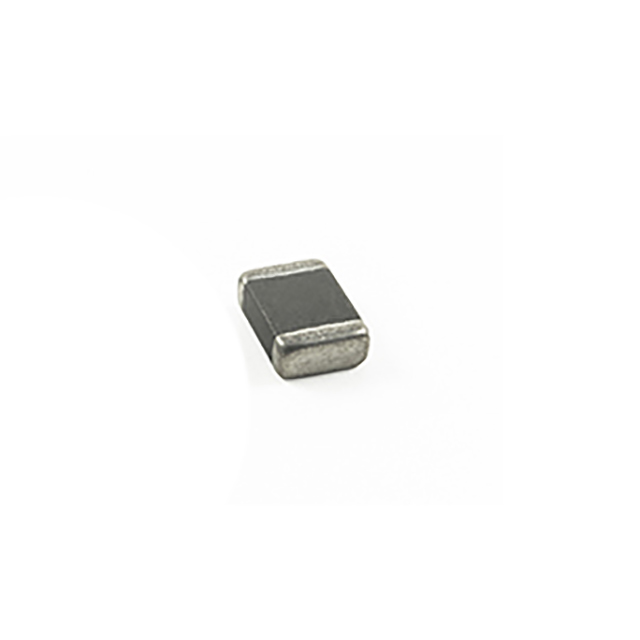

HCB05-601-RC
ActiveAllied Components International
FERRITE BEAD 600 OHM 0603 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HCB05-601-RC
ActiveAllied Components International
FERRITE BEAD 600 OHM 0603 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HCB05-601-RC |
|---|---|
| Current Rating (Max) [Max] | 1 A |
| DC Resistance (DCR) (Max) [Max] | 200 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Impedance @ Frequency | 600 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.98 | |
| 5 | $ 0.90 | |||
| 10 | $ 0.85 | |||
| 15 | $ 0.80 | |||
Description
General part information
HCB05-601-RC
600 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 1A 200mOhm
