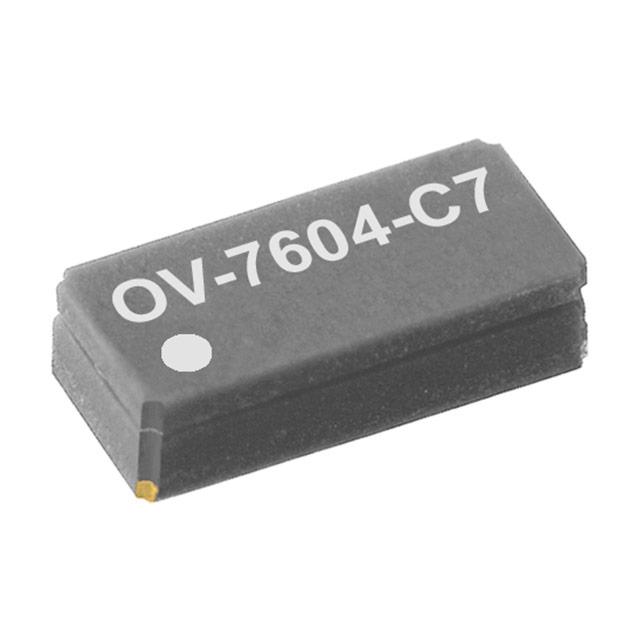

OV-7604-C7-32.768KHZ-20PPM-TB-QC
ActiveMicro Crystal AG
OSC XO 32.768KHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OV-7604-C7-32.768KHZ-20PPM-TB-QC
ActiveMicro Crystal AG
OSC XO 32.768KHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OV-7604-C7-32.768KHZ-20PPM-TB-QC |
|---|---|
| Base Resonator | Crystal |
| Frequency | 32.768 kHz |
| Frequency Stability | 20 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 1.39 | |
Description
General part information
OV-7604-C7-32.768KHZ-20PPM-TB-QC
32.768 kHz XO (Standard) CMOS Oscillator 1.2V ~ 5.5V Enable/Disable 4-SMD, No Lead
