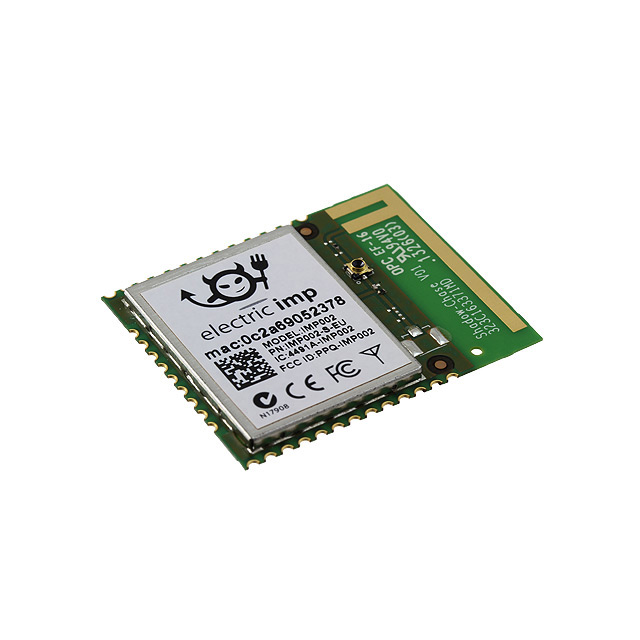

IMP002-S-EU
ObsoleteElectric Imp Inc.
RF TXRX MOD WIFI TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMP002-S-EU
ObsoleteElectric Imp Inc.
RF TXRX MOD WIFI TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMP002-S-EU |
|---|---|
| Antenna Type | Integrated, Trace |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 35-SMD Module |
| Power - Output | 16.5 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -97 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IMP002-S-EU
WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Documents
Technical documentation and resources
