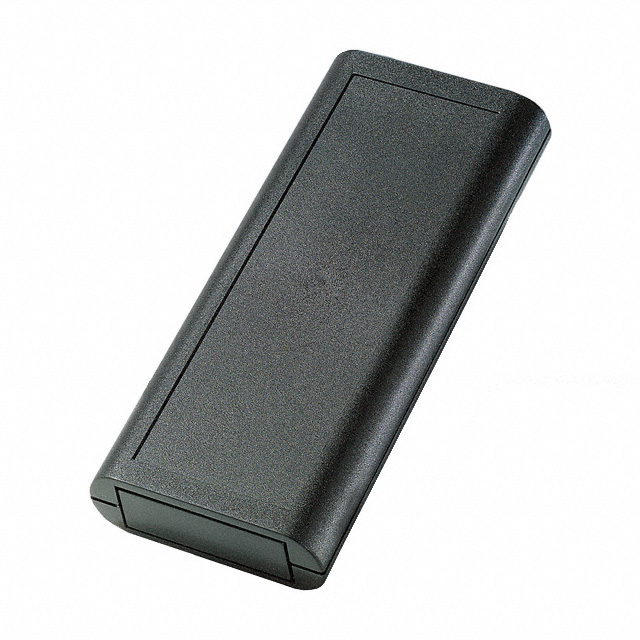

BOS 601
ActiveBopla Enclosures
BOX ABS BLACK 6.77"L X 3.03"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BOS 601
ActiveBopla Enclosures
BOX ABS BLACK 6.77"L X 3.03"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BOS 601 |
|---|---|
| Area (L x W) [custom] | 20.4 in² |
| Area (L x W) [custom] | 132 cm² |
| Color | Black |
| Container Type | Box |
| Design | Split Sides, Hand Held |
| Features | 9 V |
| Features | Battery Compartment |
| Height [z] | 25 mm |
| Height [z] | 0.984 in |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40 |
| Size / Dimension [x] | 6.772 " |
| Size / Dimension [x] | 172 mm |
| Size / Dimension [y] | 3.031 " |
| Size / Dimension [y] | 77 mm |
| Thickness | 3 mm |
| Thickness | 0.118 in |
| Weight | 117.03 g |
| Weight | 0.258 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.33 | |
| 5 | $ 24.21 | |||
| 10 | $ 22.62 | |||
| 25 | $ 20.68 | |||
| 50 | $ 19.33 | |||
| 100 | $ 18.91 | |||
Description
General part information
BOS 601
Box Plastic, ABS Black Hand Held, Split Sides 6.772" L x 3.031" W (172.00mm x 77.00mm) X 0.984" (25.00mm)
