FSMD050-9-0805R
ActiveRFE/Fuzetec
RESETTABLE FUSE - SMD, 0805 SIZE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSMD050-9-0805R
ActiveRFE/Fuzetec
RESETTABLE FUSE - SMD, 0805 SIZE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSMD050-9-0805R |
|---|---|
| Approval Agency | cUL, TUV, UL |
| Current - Hold (Ih) (Max) [Max] | 500 mA |
| Current - Max [Max] | 100 A |
| Current - Trip (It) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Concave, 0805 (2012 Metric) |
| Resistance - Initial (Ri) (Min) [Min] | 150 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 850 mOhms |
| Size / Dimension [x] | 2.15 mm |
| Size / Dimension [x] | 0.085 " |
| Size / Dimension [y] | 0.053 in |
| Size / Dimension [y] | 1.35 mm |
| Thickness (Max) [Max] | 1.25 mm |
| Thickness (Max) [Max] | 0.049 " |
| Time to Trip | 100 ms |
| Voltage - Max [Max] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 50 | $ 0.18 | |
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 3000 | $ 0.08 | |||
Description
General part information
FSMD050-9-0805R

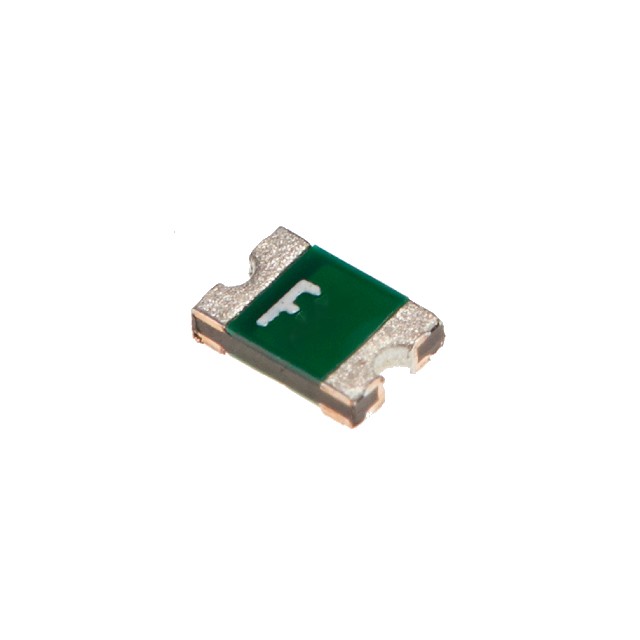

PTC Resettable Fuse 9V 500 mA Ih Surface Mount 0805 (2012 Metric), Concave
